Huahui Energy Rechargeable HTC0840 3.7V 170mAh Cobalt Oxide Lithium
battery
Product Description
- Our super Li-ion battery adopts unique design of explosion-proof
valves to replaces explosion-proof lines in traditional lithium
battery, which removes the potential risks of explosion and
catching fire in case of any accident.
- We abandon the traditional process of welding between electrodes
and cap by leading 2 poles in the same direction after their
reverting with the films. In this way, the probability of empty
solder and internal short-circuit is effectively reduced, thus
enhancing the reliability and decreasing the impedance of the
battery. Besides, the leading poles could be soldered on special
PCB directly, to reduce the impedance of battery pack by saving
process of spot welding.
HCC0840 Parameter
| Model: | HCC 0840 |
|---|
| Voltage&Capacity: | 3.7V 170mAh |
| Rate: | 10C |

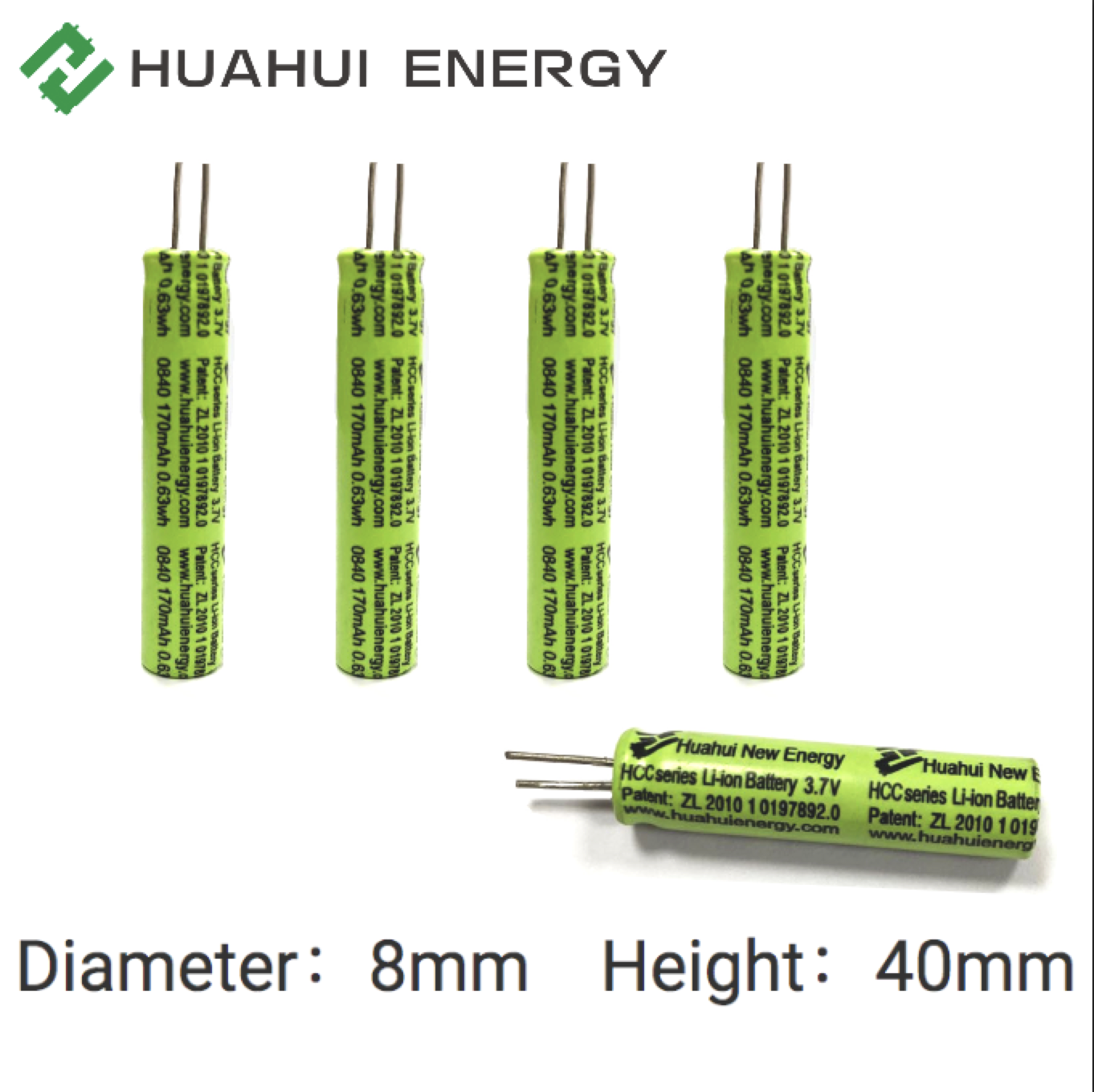

| Diameter: | 08mm (±0.15mm) |
| Height: | 40mm (±0.5mm) |
| Weight: | 4.6g |
| Cycle life: | 0.5C > 800 times, 1C and above > 500 times |
| Positive electrode material: | Mixed material of lithium cobaltate and lithium manganate |
| Anode material: | Lithium Titanate |
Product Advantage
Characteristic:
◉ Revolutionary explosion-proof design,no leakage,no heavy metal；
◉ Cost-effective,much safer than traditional lithium battery；
◉ High consistency,High discharge platform,Stable charge and discharge,Rate battery, Distinguished performance while it is operating；
◉ Operating temperature range:-30～75 degree
◉ Working rate:5～15C
◉ Cycle Life:0.5C>800 times,High rate>500 times
Revolutionary double explosion-proof technology:
Top colloidal particles explosion-proof: automatic carbonization in case of high temperature makes the
battery automatically inactive
Bottom cross explosion-proof valve: the bottom will be slightly propped open when under pressure, no
fire or explosion.
Application
Portable Mobile Devices, Consumer Electronics and so on.
Huahui Energy Needs your support!
Real Pic of Huahui energy Hunan Base
Hunan Huahui New Energy Co., Ltd.
is a high-tech enterprise specializing in R&D, design,
production and sales of capacitive lithium-ion batteries. Huahui
Energy has a complete range of lithium batteries, covering five
major material systems: HTC lithium titanate, HFC lithium iron
phosphate, HMC lithium manganate, HCC lithium cobalt oxide, and NSC
ternary lithium. It has the characteristics of good safety, strong
consistency, long cycle life and good discharge characteristics.
Mainly used in smart toys, small household appliances, LED
lighting, smart vehicle equipment, electronic cigarettes, digital
products, energy storage and other fields. Complete export
certification, exported to many countries in Asia, Europe, America
and so on.
