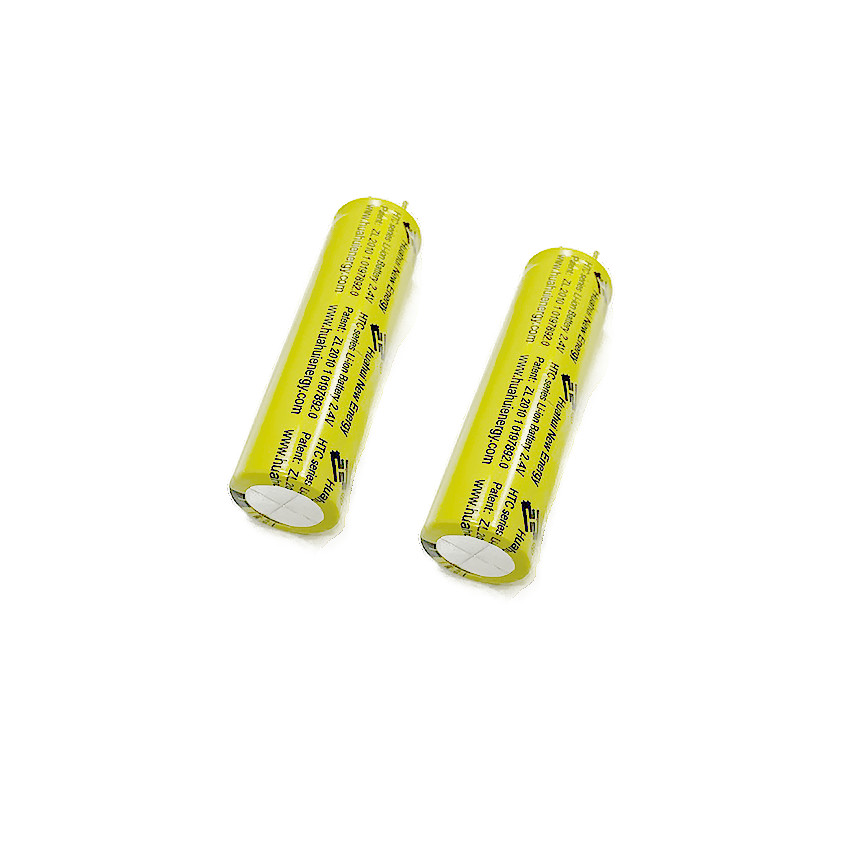

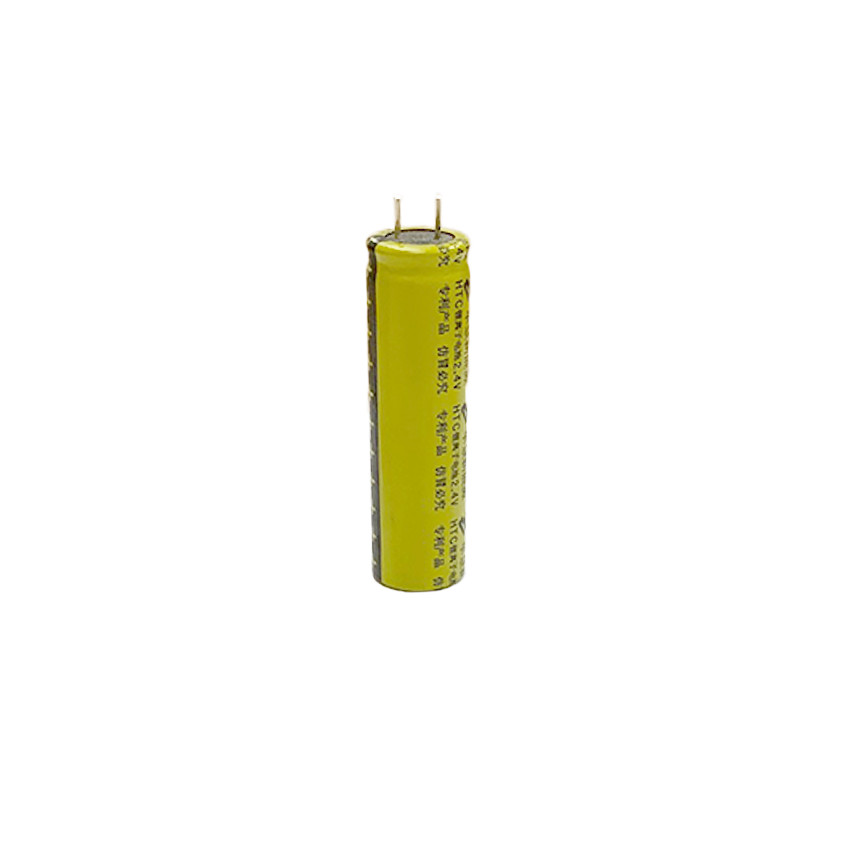

Huahui Energia Rechargeable Lto Cell Li-Ion HTC1865 2.4V 1300mAh
Titanate Lithium battery LTO Battery
Product Description
- Our super Li-ion battery adopts unique design of explosion-proof
valves to replaces explosion-proof lines in traditional lithium
battery, which removes the potential risks of explosion and
catching fire in case of any accident.
- We abandon the traditional process of welding between electrodes
and cap by leading 2 poles in the same direction after their
reverting with the films. In this way, the probability of empty
solder and internal short-circuit is effectively reduced, thus
enhancing the reliability and decreasing the impedance of the
battery. Besides, the leading poles could be soldered on special
PCB directly, to reduce the impedance of battery pack by saving
process of spot welding.
HTC1865 Parameter
| Model: | HTC 1865 |
|---|
| Voltage&Capacity: | 2.4V 1300mAh |
| Rate: | 10C |
| Diameter: | 18mm (±0.15mm) |
| Height: | 65mm (±0.5mm) |
| Weight: | 38.5g |
| Cycle life: | 0.5C > 10000 times, 1C and above > 5000 times |
| Positive electrode material: | Mixed material of lithium cobaltate and lithium manganate |
| Anode material: | Lithium Titanate |
Product Advantage
Characteristic:
◉ Revolutionary double explosion-proof design,Excellent Safety Performance, Can be used without BMS, no leakage,no heavy metal, Fast charge and discharge rate, Distinguished performance in High and Low temperature, Super long cycle life, Cost-effective；
◉ High consistency, Stable charge and discharge, Rate battery；
◉ Operating temperature range:-30～75 degree or -40~75 degree
◉ Working rate:1～40C
◉ Cycle Life:0.5C>10000 times,1C and above >5000 times
Revolutionary double explosion-proof technology:
Top colloidal particles explosion-proof: automatic carbonization in case of high temperature makes the
battery automatically inactive
Bottom cross explosion-proof valve: the bottom will be slightly propped open when under pressure, no
fire or explosion.
Application
Car Battery,Electronic equipment, Energy Storage, Ultra-low temperature working equipment and so on.
Chcek Youtube Video:
https://www.youtube.com/watch?v=T6JzawiTwwo&lc=UgylEIo73ocUPlxnNUd4AaABAg
Qustion and Answer
Q&A:
Q1: What is this battery?
A1: This is supercapacitor shape lithium ion battery 18650.
Q2: How many types it has?
A2: It has two types: -30 degree and -40 degree.
Q3: What is the advantages of this battery?
A3: This battery is drawn in the same direction as the positive and
negative electrodes, and the pins can be directly connected to the
connection board, eliminating the need for the point-nickel
connection of traditional steel-shell batteries, which is more
convenient, and can also be directly connected by bending the legs.
Product motherboard, eliminating the need for soldering steps.
This battery has a self-healing function, puncture and short
circuit will not affect its continued use.
This battery has good consistency, and the actual test results
between each two maintain a similarity of more than 98%.
Operating temperature is very wide, from -40 degrees to +75 degrees
can be used, sometimes even at +100 degrees operating temperature
can be used.
Q4: Why choose Huahui Energy?
A4: Before the establishment of Huahui Energy, we have an equipment
company that has been producing capacitors equipment. Therefore,
Huahui Energy has more than 40 years of experience in the
production of super capacitors equipment, and has a very deep
understanding of the advantages of capacitors. All the
understanding of the advantages of capacitors is used to produce
supercapacitor lithium batteries, so that the produced
supercapacitor lithium batteries have all the advantages of
capacitors.
Q5: How to ensure that the batteries for each customer meet the
needs?
A5: Before sending large quantities of batteries to customers, we
always send samples. If the samples are not suitable, we will
improve our products according to the needs of customers (batteries
for each customer are almost customized) until they meet the needs
of customers.
Q6: What is the shelf life of this battery?
A6: More than 5 years.
Q7: How long is the warranty period for this battery?
A7: One year.
