Huahui Energy Rechargeable HCC1320 3.7V 180mAh Lithium cobalt oxide
battery
Product details
- With high energy conversion rate HCC1320 lithium cobalt oxide battery has high discharge platform
and good consistency, and it can be fully charged in several mins.
- Our super Li-ion battery adopts unique design of explosion-proof
valves to replaces explosion-proof lines in traditional lithium
battery, which removes the potential risks of explosion and
catching fire in case of any accident.
- We abandon the traditional process of welding between electrodes
and cap by leading 2 poles in the same direction after their
reverting with the films. In this way, the probability of empty
solder and internal short-circuit is effectively reduced, thus
enhancing the reliability and decreasing the impedance of the
battery. Besides, the leading poles could be soldered on special
PCB directly, to reduce the impedance of battery pack by saving
process of spot welding.
HCC6538 Parameter
| Model: | HCC 1320 |
|---|
| Voltage&Capacity: | 3.7V 180mAh |
| Rate: | 10C |
| Diameter: | 65mm (±0.15mm) |
| Height: | 38mm (±0.5mm) |
| Weight: | 5.8g |
| Cycle life: | 0.5C > 800 times, 1C and above > 500 times |
| |
- 650000Piece/Pieces per Month

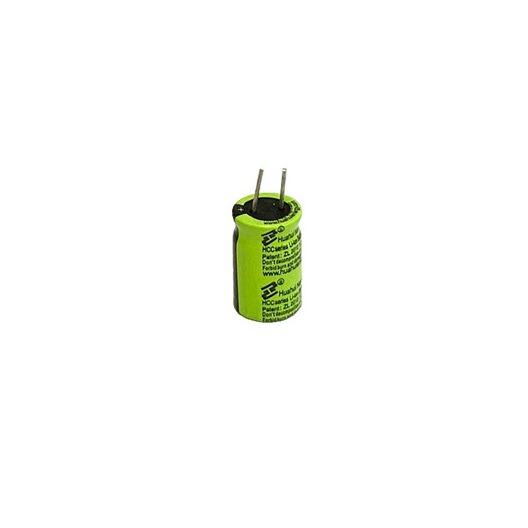

Produce Picture
Product Advantage
Characteristic:
◉ Revolutionary explosion-proof design,no leakage,no heavy metal；
◉ Cost-effective,much safer than traditional lithium battery；
◉ High consistency,High discharge platform,Stable charge and discharge,High Rate battery, Distinguished performance while it is operating；
◉ Operating temperature range:-30～75 degree
◉ Working rate:5～15C
◉ Cycle Life:0.5C>800 times,High rate>500 times
Revolutionary double explosion-proof technology:
Top colloidal particles explosion-proof: automatic carbonization in case of high temperature makes the
battery automatically inactive
Bottom cross explosion-proof valve: the bottom will be slightly propped open when under pressure, no
fire or explosion.
Key Features:
Super Safety
Intelligent Battery Pack Design
Environmental Friendly Chemistr
High Energy Density
High Power Density
Excellent Electrical Property
Excellent Cycle Life
Application areas
portable mobile devices,toys and so on
Hunan Huahui New Energy
Real Pic of Huahui energy Hunan Base
Hunan Huahui New Energy Co., Ltd.
is a high-tech enterprise specializing in R&D, design,
production and sales of capacitive lithium-ion batteries. Huahui
Energy has a complete range of lithium batteries, covering five
major material systems: HTC lithium titanate, HFC lithium iron
phosphate, HMC lithium manganate, HCC lithium cobalt oxide, and NSC
ternary lithium. It has the characteristics of good safety, strong
consistency, long cycle life and good discharge characteristics.
Mainly used in smart toys, small household appliances, LED
lighting, smart vehicle equipment, electronic cigarettes, digital
products, energy storage and other fields. Complete export
certification, exported to many countries in Asia, Europe, America
and so on.
