Cylindrical Battery Cells Rechargeable HCC1030 150mAh 3.7V Lithium
Cobalt Oxide Batteries
Huahui Energia Rechargeable HTC1030 3.7V 150mAh Cobalt Oxide
Lithium battery LCO Battery
Product details
- Our super Li-ion battery adopts unique design of explosion-proof
valves to replaces explosion-proof lines in traditional lithium
battery, which removes the potential risks of explosion and
catching fire in case of any accident.
- We abandon the traditional process of welding between electrodes
and cap by leading 2 poles in the same direction after their
reverting with the films. In this way, the probability of empty
solder and internal short-circuit is effectively reduced, thus
enhancing the reliability and decreasing the impedance of the
battery. Besides, the leading poles could be soldered on special
PCB directly, to reduce the impedance of battery pack by saving
process of spot welding.
HCC1030 Parameter
| Model: | HCC 1030 |
|---|
| Voltage&Capacity: | 3.7V 150mAh |
| Rate: | 10C |
| Diameter: | 10mm (±0.15mm) |
| Height: | 30mm (±0.5mm) |
| Weight: | 4.8g |
| Cycle life: | 0.5C > 10000 times, 1C and above > 5000 times |
| Positive electrode material: | Mixed material of lithium cobaltate and lithium manganate |
| Anode material: | Lithium Titanate |
- 400000Piece/Pieces per Month

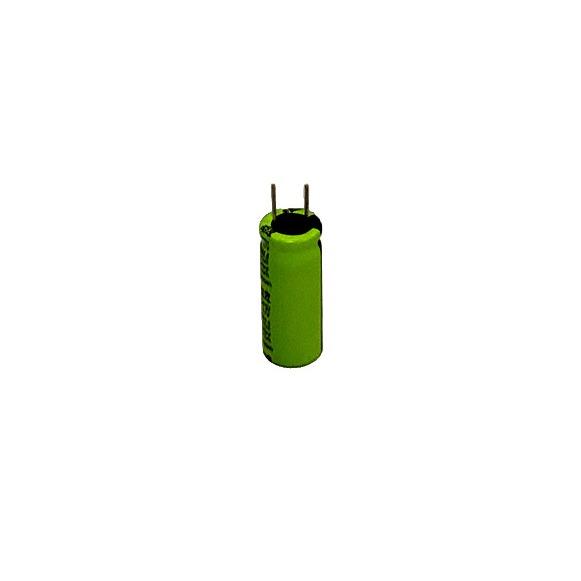

Produce Picture
Product Advantage
Characteristic:
◉ Revolutionary double explosion-proof design,Excellent Safety Performance, Can be used without BMS, no leakage,no heavy metal, Fast charge and discharge rate, Distinguished performance in High and Low temperature, Super long cycle life, Cost-effective；
◉ High consistency, Stable charge and discharge, Rate battery；
◉ Operating temperature range:-35～75 degree
◉ Working rate:1～40C
◉ Cycle Life:0.5C>10000 times,1C and above >5000 times
Revolutionary double explosion-proof technology:
Top colloidal particles explosion-proof: automatic carbonization in case of high temperature makes the
battery automatically inactive
Bottom cross explosion-proof valve: the bottom will be slightly propped open when under pressure, no
fire or explosion.
Key Features:
Super Safety
Intelligent Battery Pack Design
Environmental Friendly Chemistr
High Energy Density
High Power Density
Excellent Electrical Property
Excellent Cycle Life
Application areas
Precision instruments, consumer electronic products like electronic stylus and so on.
Hunan Huahui New Energy
Real Pic of Huahui energy Hunan Base
Hunan Huahui New Energy Co., Ltd.
is a high-tech enterprise specializing in R&D, design,
production and sales of capacitive lithium-ion batteries. Huahui
Energy has a complete range of lithium batteries, covering five
major material systems: HTC lithium titanate, HFC lithium iron
phosphate, HMC lithium manganate, HCC lithium cobalt oxide, and NSC
ternary lithium. It has the characteristics of good safety, strong
consistency, long cycle life and good discharge characteristics.
Mainly used in smart toys, small household appliances, LED
lighting, smart vehicle equipment, electronic cigarettes, digital
products, energy storage and other fields. Complete export
certification, exported to many countries in Asia, Europe, America
and so on.
