Huahui Energia Rechargeable USB Battery AAA 1.5V 400mAh Micro Head
,Type-c Direct Changing Battery
Product Description
This specification describes the electrical performance and
precautions for USB rechargeable lithium-ion AAA batteries. This
specification applies to USB rechargeable lithium-ion AAA batteries
produced by Hunan Huahui New Energy Co., Ltd.
Essential details:
| Brand Name: | huahui new energy |
| Certification: | CE,ROHS,MSDS,UN38.3 |
| Model Number: | USB AAA-3 RECHARGEABLE BATTERIES |
| Color: | Black |
| Battery Size: | 10.5*44.5*43±0.2mm |
| Place of Origin: |
Guangdong, China |
| Weight |
7.5g |
| Voltage&Capacity | 1.5V 400mAh |
| Cycle Life |
1000 Times |
| Storage Type: |
-10-25℃ |
| Warranty: |
1year |
| Annual Self-discharge Rate |
10%~15% |
| Changeable |
Yes |
| Features: | Environmental Safety Long Life |
| Working temperature range | -20℃-60℃ |
Basic Specification:
| No | Description | Unit | Parameter | Remark |
| 1 | Open Circuit Voltage | V | 1.5V(±0.5) | Under no load Situation |
| 2 | Working Voltage | V | (1.4±0.05) | The battery is 80% charged and the load is 0.2A |
| 3 | Cells Spec | V/mAh | 3.7/160 | 1C discharge after battery standard charging |
| 4 | Battery Power | mWh | 600(400mAh) | (Discharge at 200mA, the actual effective capacity is 300~380mAh) |
| 5 | USB Charge Voltage | V | DC5.0 | USB input DC/5V±0.2 |
| 6 | USB Charge current | mA | 250 | USB input DC5V/>0.5A |
| 7 | Standard Charge Time | Min | 60 | (IEC standard):Indicator status: The indicator light G-LED flashes
during charging, and the full-charge G-LED indicates light. |
| 8 | Fast Charging Time | Min | 45 | Charge saturation>90% |
| 9 | Discharge Current | mA | standard:200 (Max:1000) | Short instantaneous pulse discharge current ≥ 1.5A |
| 10 | Discharging Time | Min | standard:150 | Standard discharge time: about 150 minutes (Discharge current 200mA) |
| 11 | Discharge Cut-off Vol | V | 0.9V | |
| 12 | Cycle Life | Cycle | 800 | 1C standard charge and discharge use Restore the initial capacity ≥60% (refer to the standard charge and
discharge of the battery) |
| 13 | Working Temp | ℃ | -20~60 | |
| 14 | Storage Temp | ℃ | -10~25 | -10~60 ℃ ≤ 60 days, - 10~45 ℃ ≤ 90 days, - 10~25 ℃ ≤ 360 days, and
the recovery capacity shall not be less than 70% of the initial
capacity |
| 15 | Storage Humidity | % | ≤85 | |
| 16 | Yearly Self-discharge | % | 10~15 | |
| 17 | Charging Temperature Rise | K | 16K | |
| 18 | Quiescent Current | uA | <8 | |
| 19 | LED Status | -- | GREEN-LED | 1 Hz flashing during charging, full of constant light, discharge
off, discharge short circuit 10 Hz high speed flashing! |

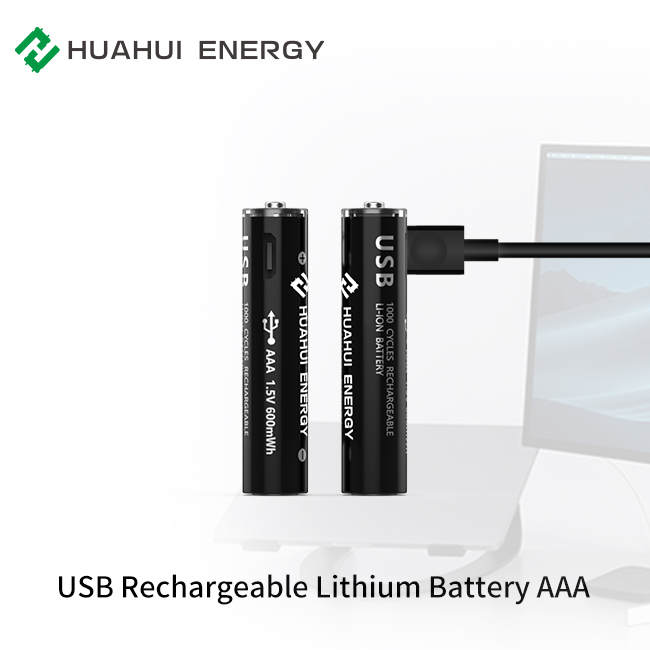

Produce Picture
Product Advantage
- USB direct charging, convenient
- Lithium-dried, no leakage, good safety
- Environmental protection, high efficiency and low cost of use
- High consistency, Stable charge and discharge, Rate battery；
- Excellent Cycle Life 1.5V 400mAh 1C Working temperature: -20~60 degrees Celsius Storage
temperature: -20~60 degrees Celsius Cycle life: more than 1000
times
Key Features: Super Safety
Revolutionary double explosion-proof technology:
Top colloidal particles explosion-proof: automatic carbonization in case of high temperature makes the
battery automatically inactive
Bottom cross explosion-proof valve: the bottom will be slightly propped open when under pressure, no
fire or explosion.
Application
Electric toys,game controllers,microphones,etc.
Hunan Huahui New Energy Company Profile
Real Pic of Huahui energy Hunan Base
Hunan Huahui New Energy Co., Ltd.
is a high-tech enterprise specializing in R&D, design,
production and sales of capacitive lithium-ion batteries. Huahui
Energy has a complete range of lithium batteries, covering five
major material systems: HTC lithium titanate, HFC lithium iron
phosphate, HMC lithium manganate, HCC lithium cobalt oxide, and NSC
ternary lithium. It has the characteristics of good safety, strong
consistency, long cycle life and good discharge characteristics.
Mainly used in smart toys, small household appliances, LED
lighting, smart vehicle equipment, electronic cigarettes, digital
products, energy storage and other fields. Complete export
certification, exported to many countries in Asia, Europe, America
and so on.
